Particle Vacuum Hopper Loader for Wedlon Automation Co., Ltd.

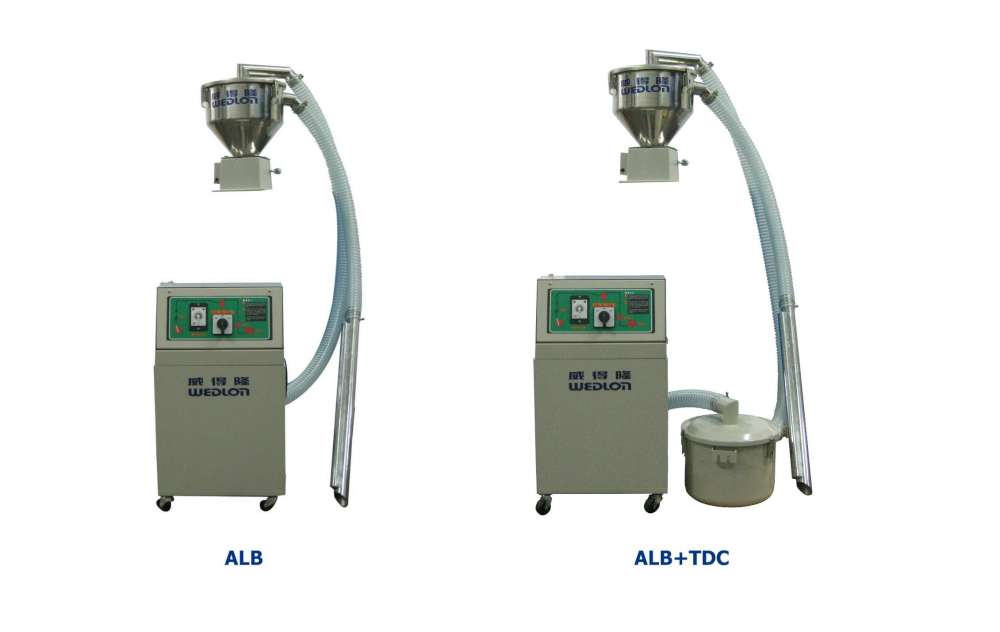

Particle Vacuum Hopper Loader
Product ID: ALB Series Inquiry
Auto Suck Particle Hopper Loader is major applied to convey plastic particle to hopper dryer of plastic molding machine automatically.

Click the above image for details.

Particle Vacuum Hopper Loader is major applied to convey plastic particle to hopper dryer of plastic molding machine automatically.

  • Traditional control panel, easy to operate and easy to maintain.
  • The machine and the hopper are designed separately, which is safe and convenient.
  • Strong suction and good suction effect.
  • Stainless vacuum hopper, integrated molding, outside paint, beautiful, durable and easy for cleaning.
  • The first design for powder-removing automatic suction machine.
  • The special dust collecting tank (15L) doubles the storage capacity, and the filter element can be separated for outdoor cleaning to avoid pollution in the factory and machine.
  • Material shortage automatic alarm device.
  • Motor reversible net cleaning.
  • Motor overload protection device.
MODEL ALB-2 ALB-3 ALB-5 ALB-7
Machine Type 3 ∮ Separate 3 ∮ Separate 3 ∮ Separate 3 ∮ Separate
Horsepower 2Hp 3 Hp 5 Hp 7.5Hp
Conveying 550 kg/hr 750 kg/hr 950 kg/hr 1200kg/hr
Conveying length 12m 18m 30m 45m
Vacuum Hopper HV-12L(∮38) HV-12L(∮38) HV-22L(∮50) HV-22L(∮50)
Hopper Dimension ∮300L*410W*495H ∮300L*410W*495H ∮300L*410W*620H ∮300L*410W*620H
Machine Dimension 435L*410W*740H 435L*410W*740H 435L*410W*740H 575L*505W*910H
Machine weight 58 Kg 71 Kg 103 Kg 117Kg
