High Speed Crusher for Wedlon Automation Co., Ltd.

High Speed Crusher
Product ID: GW-350RH Inquiry

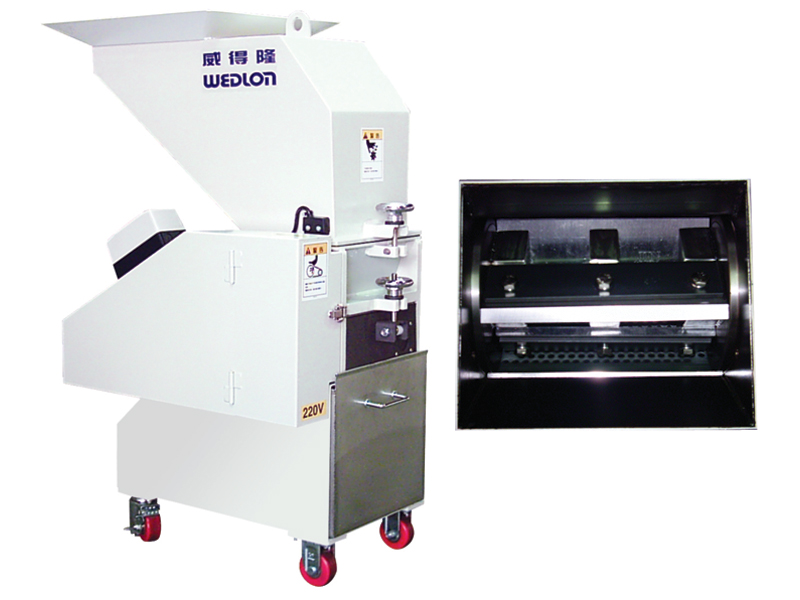

The High Speed Crusher Machine is major for crushing the various materials

Click the above image for details.

The High Speed Crusher is suitable for rubber, plastic injection molding, wood, food and environment recycling industry.  It is major for granulating various objects, such as rubber, plastic injection molding, extrusion molding, blow molding defectives or wasted runners.  It is also applied for granulating wood, Chinese herb, tea stem, feed, paper (destruction of documents) and glasses.



  • It’s suitable for on-the-spot crushing with robot and, cycle immediately and space-efficient.
  • Wider in-feed inlet designed to accommodate a variety of higher volume materials.
  • Faster cutter replacement, easy cleaning allows rapid screen changing.
  • Size of crushed particle adjustable depends on screen changed (From Ø2~ Ø30mm).
  • Cutter shaft with exceptional efficiency cutting angle designed that with least vibration and minimized powder yield.
  • Built-in emergency safety switch, which allows automatic stopping when hopper are being opened.
  • Special designs made to meet customer’s need.
Model GW-350RH
Horsepower 3 ~ 5 HP
Inlet Size 350 x 220 mm
Rotating Diameter Ø180 mm
R.P.M 380 rpm
Rotary Cutter 3 pcs
Stationary Cutter 2 pcs
Capacity 150 ~ 200 Kg/hr
Contents 30 Kg
Machine Weight 235 Kg
Machine Size 850 x 580 x 1,230 mm
