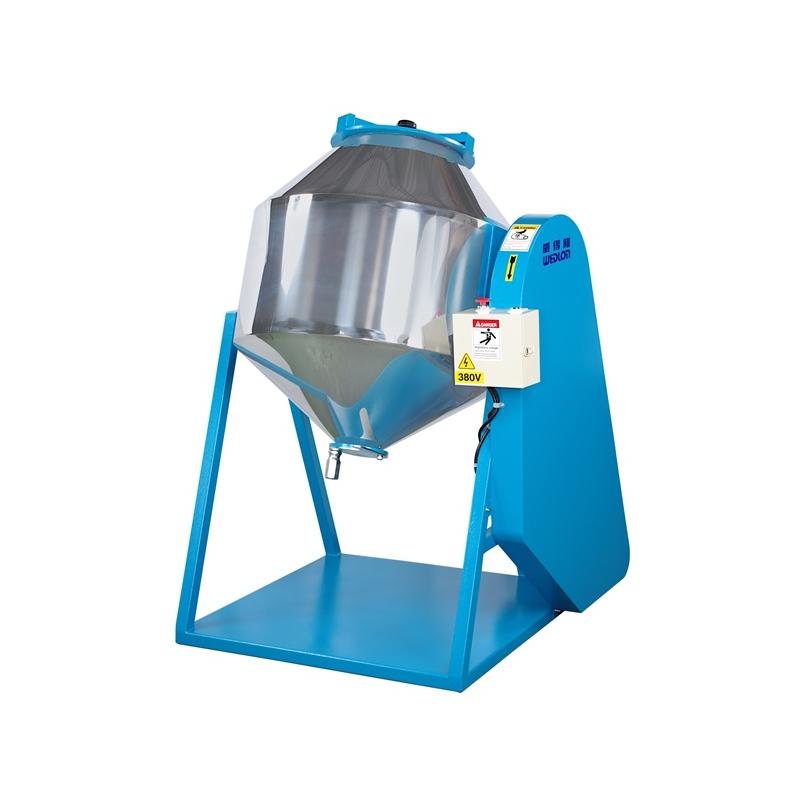

Sun Type Mixer
Product ID: MST Series Inquiry

Click the above image for details.

Sun Type Mixing Machine is major for blending rubber, plastic virgin material, recycle material, colorant and masterbatches..

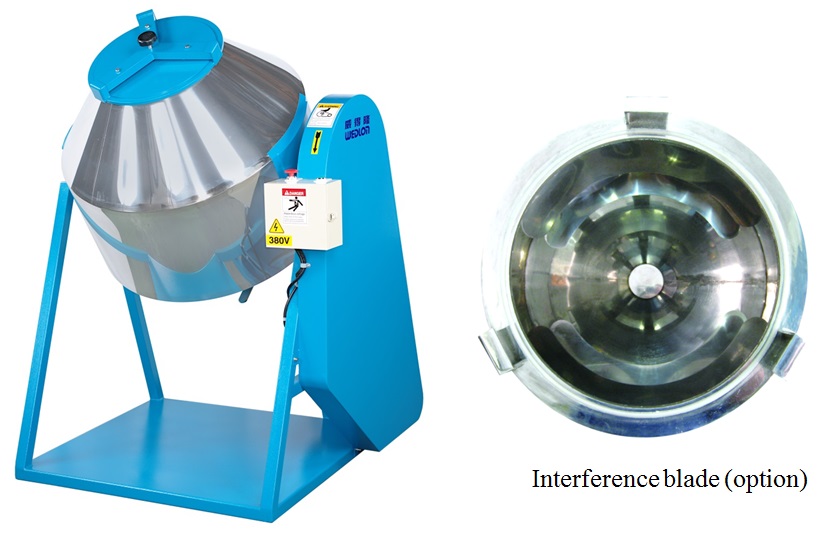

Sun Type Mixing Machine, the blending barrel is cone shape, mixing raw materials by slowly rolling.

Sun Type Mixing Machine, mixing well by affixing interfering blade.



  • It is major for blending rubber, plastic virgin material, recycle material, colorant and masterbatches.
  • The blending barrel is cone shape, mixing raw materials by slowly rolling.
  • Attach inference blade to increase evenness of mixing material. (Option)
  • The upper and lower covers can be equipped with a silicone gasket (optional) to achieve full-closed chamber rotation mixing, and there will be no leakage.
  • Large feeding inlet at upper, proper exhausting outlet at lower part.
  • Integrated polish inside and outside, smooth surface no leftover.
  • Attach the timer and emergency stop switch.
  • Special designs made to order for meeting customer’s need.



Model MST-10 MST-25 MST-50 MST-100 MST-200
Horsepower 0.5HP/6P 0.5HP/6P 0.5HP/6P 1 HP/6P 3HP/6P
Capacity 10 kg 25 kg 50 kg 100 kg 200kg
R.P.M. 30 rpm 30 rpm 30 rpm 30 rpm 30rpm
Machine Weight 80 kg 100 kg 120 kg 180 kg 210kg
Machine Size(WxDxH) 580 x 710 x 900mm 700 x 750 x 1,200mm 850 x 950 x 1,450mm 1,035 x 1,100 x 1,450mm 1760 x1500 x2060mm




Related Products

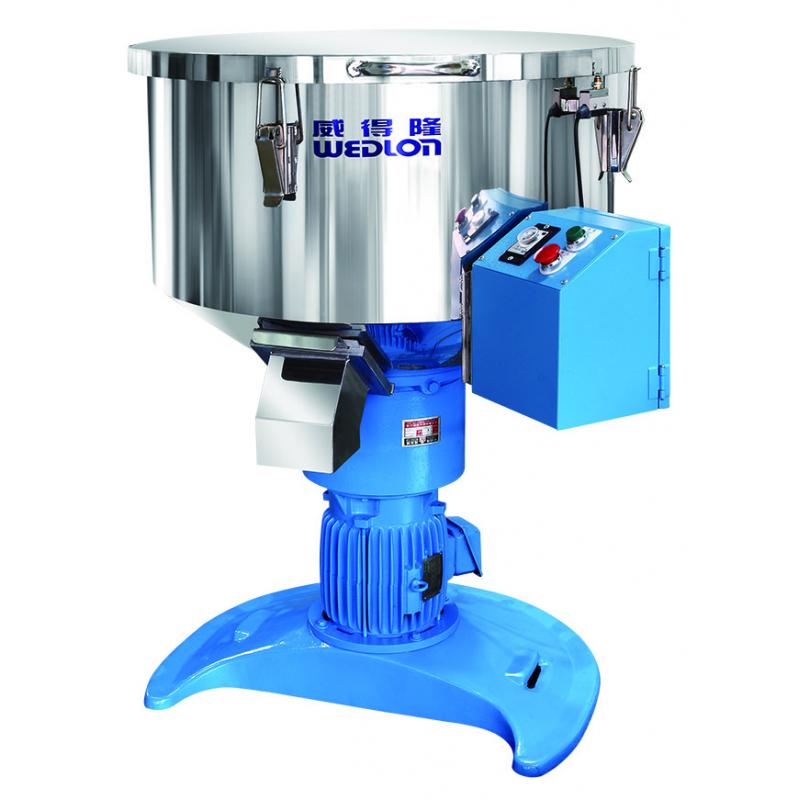

Vertical Type Blender (MVT-Series)

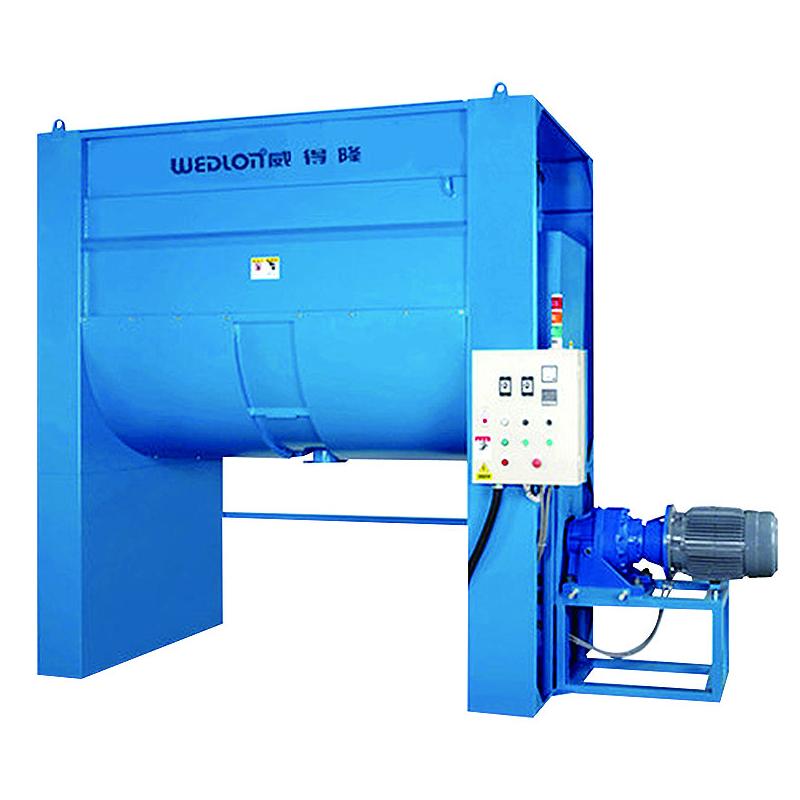

Horizontal Type Mixer (MHT Series)
